Weighing Just 6 Grams: TPM3D Empowers Drone Innovation Through Ultra-Lightweight 3D Printing Solutions

According to the *2023–2024 China Civilian Unmanned Aerial Vehicle Development Report* by the China Air Transport Association, China has retained its position as the world’s largest exporter of civilian drones, accounting for over 70% of global patent applications. By the end of 2023, over 1,000 domestically mass-produced drone models had entered the market, bringing the industry to a scale of CNY 117.43 billion—an impressive 32% year-on-year increase.

Since DJI launched the first consumer-grade drone in 2012, China’s civilian UAV market has grown explosively, expanding into sectors such as agricultural spraying, remote sensing, disaster warning, and mineral exploration. As drone technologies advance rapidly, so too does the frequency of model iterations.

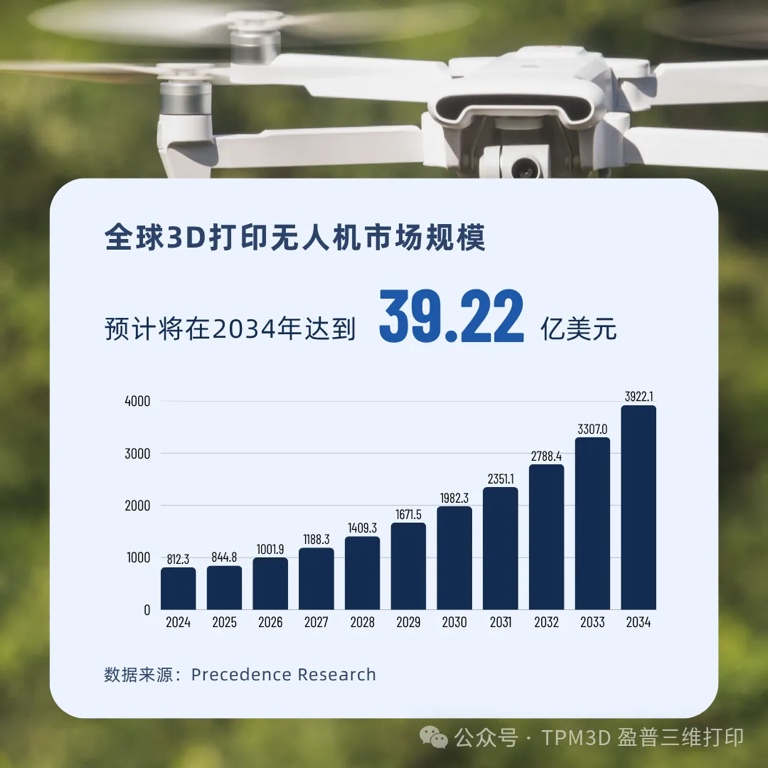

Amid this surge, 3D printing has emerged as a crucial enabler for rapid prototyping and efficient production in the drone industry. According to Precedence Research, the global market for 3D-printed drones reached USD 812 million in 2024 and is projected to soar to USD 3.922 billion by 2034, with a compound annual growth rate (CAGR) of 17.1%.

Technologies such as Powder Bed Fusion (PBF), Fused Deposition Modeling (FDM), and Continuous Fiber Reinforcement (CFR) are widely adopted in the UAV sector. Among them, Selective Laser Sintering (SLS)—a prominent PBF variant—has become the preferred solution for 3D printing structural drone components due to its superior Z-axis strength, dimensional stability, surface finish, design flexibility, and cost efficiency.

Ultra-Lightweight Frame: Just 6 Grams with TPM3D SLS Technology

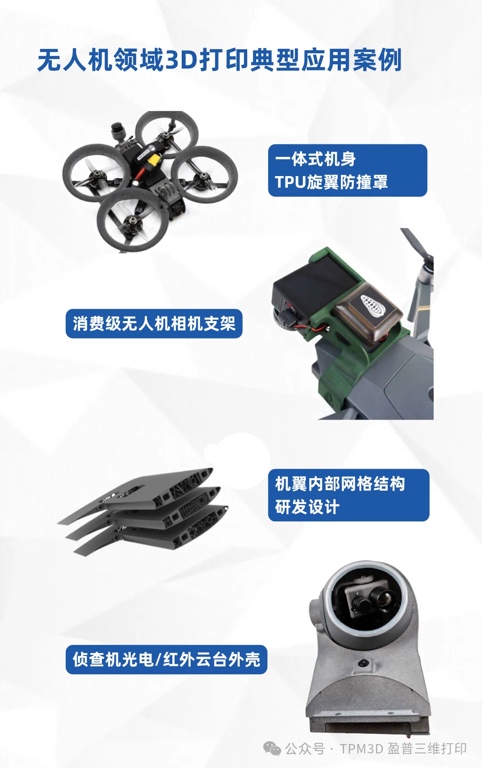

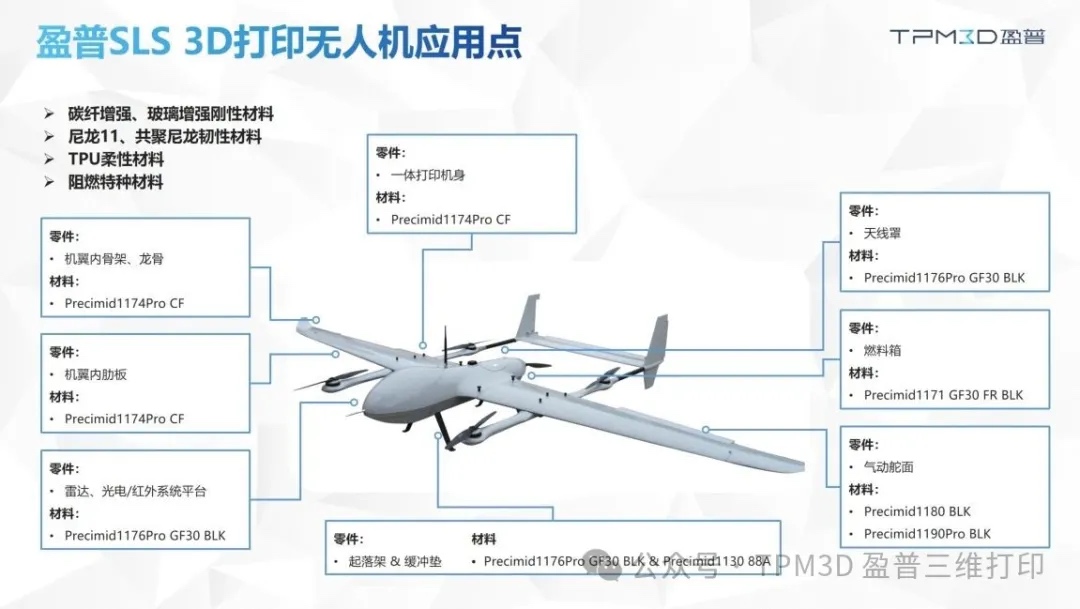

TPM3D has spent over two decades refining SLS technology, developing a complete ecosystem of 3D printing equipment and materials. Its material portfolio includes carbon-fiber-reinforced and glass-fiber-reinforced nylon for rigidity, as well as flexible options like Nylon 11 and copolyamide blends, and specialty flame-retardant formulations. These materials support components across a range of UAV types—from multicopter arms and battery mounts to propeller guards, fuselages, fuel tanks, and wing spars in fixed-wing drones.

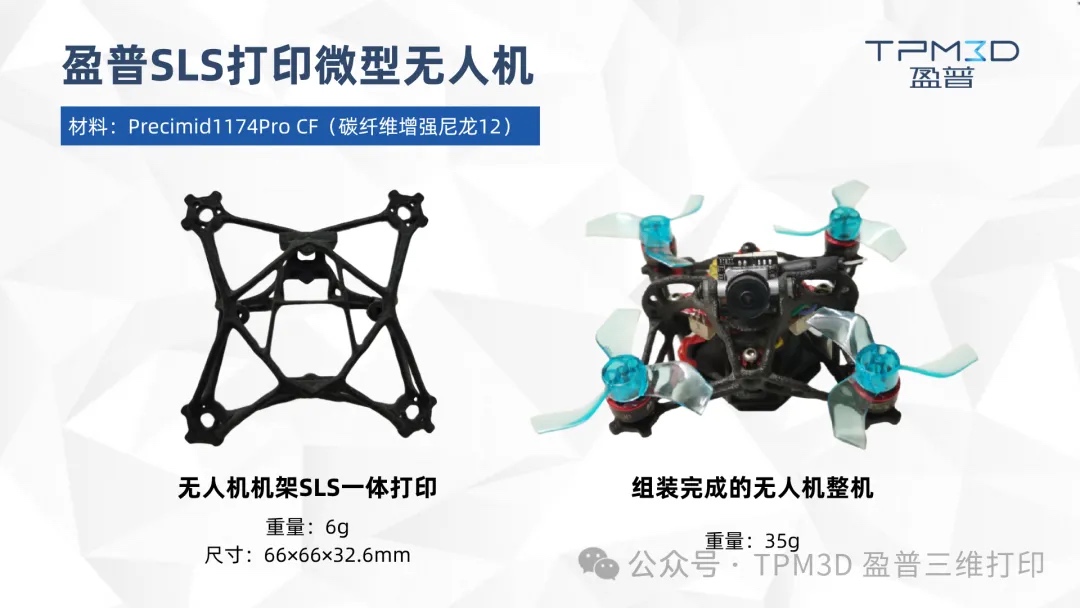

In one notable case, TPM3D produced a micro drone frame with a topologically optimized, monolithic design measuring 66 × 66 × 32.6 mm. Crafted from Precimid1174Pro CF (a carbon-fiber-reinforced Nylon 12), the frame was manufactured using SLS, which fuses powder layer-by-layer with a laser. Unsintered powder serves as natural support, eliminating the need for auxiliary structures and post-removal, preserving surface integrity.

The final component weighs just 6 grams, combining minimal mass with excellent rigidity. The fully assembled drone weighs only 35 grams, operates quietly, and offers precise control—making it ideal for rescue missions, reconnaissance, racing, and recreational use. This showcases the power of SLS in micro drone fabrication and highlights TPM3D’s integrated material-process innovation.

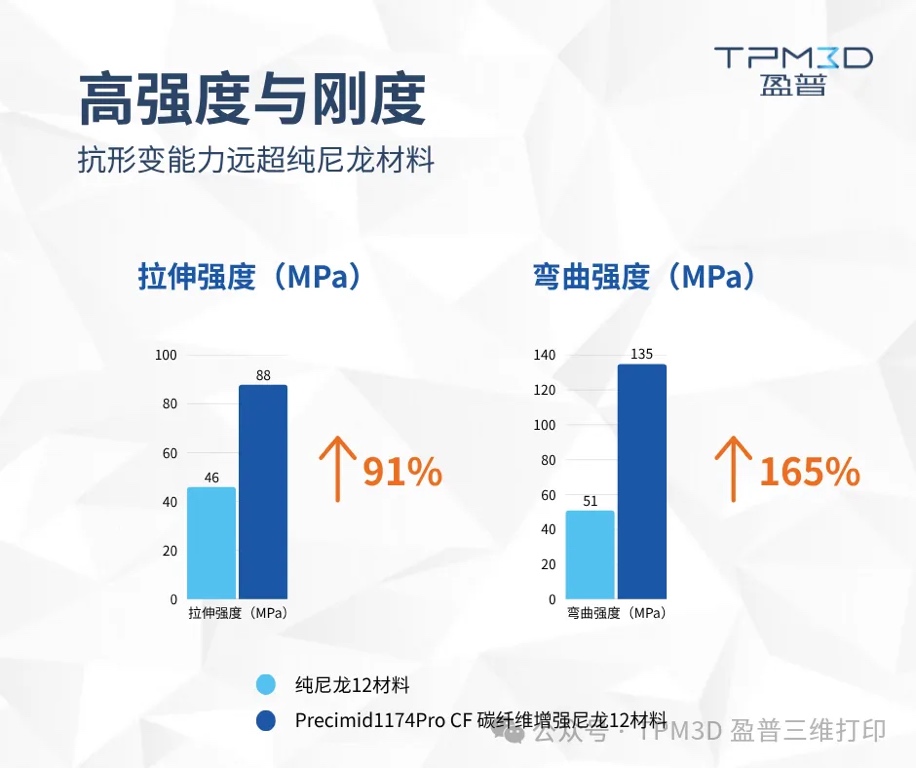

Material Performance: Precimid1174Pro CF

This carbon-fiber-enhanced Nylon 12 formulation embeds short carbon fibers in the powder base, yielding outstanding mechanical properties:

* Tensile strength: 88 MPa (+91% vs. pure PA12)

* Flexural strength: 135 MPa (+165%)

* Tensile modulus: 9,000 MPa (+389%)

* Flexural modulus: 6,000 MPa (+369%)

These enhancements deliver a dramatic increase in strength-to-weight ratio, improving the drone frame’s resistance to breakage and deformation under load.

Beyond Prototypes: TPM3D SLS Parts Pass Real-World Testing in Quadcopter Project

In a recent quadcopter manufacturing project, engineers faced rigorous performance demands, including extended range, long flight endurance, and intricate geometries such as thin walls, holes, and clips. This required both high-precision manufacturing and advanced materials.

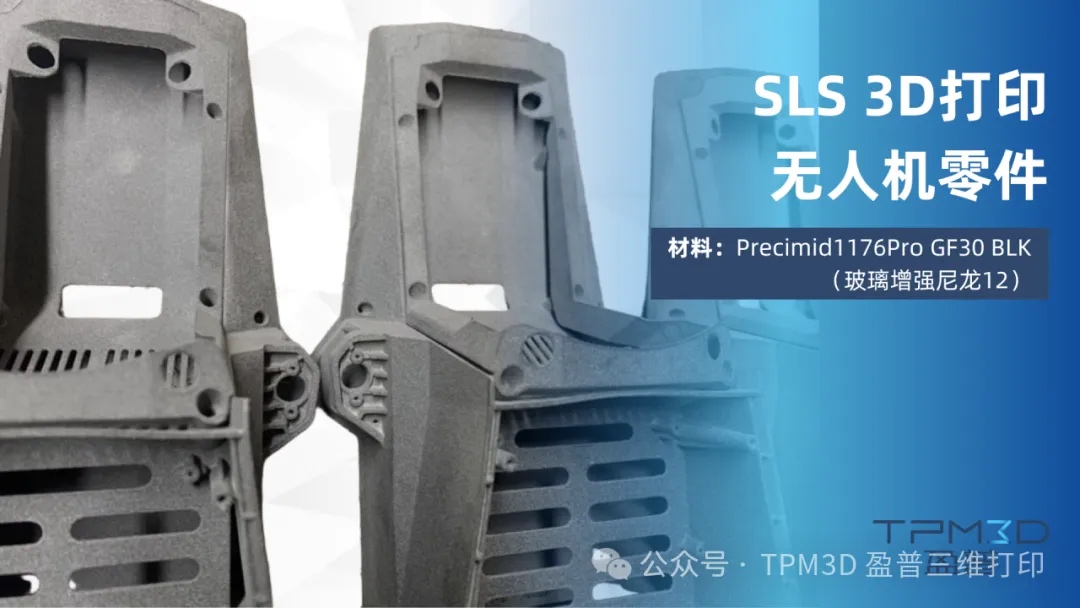

TPM3D addressed the challenge using Precimid1176Pro GF30 BLK, a glass-fiber-reinforced Nylon 12, produced through SLS 3D printing.

The resulting parts passed multiple demanding tests:

* Static load: Maintained structural integrity under weight-bearing conditions

* Thermal cycling: Withstood both high and low temperatures without deformation

* EM shielding: Enabled stable communication in complex electromagnetic environments

* Flight dynamics: Withstood high-agility maneuvers at 8 m/s, confirming robustness under real-world conditions

These results validate the reliability of TPM3D’s material-technology synergy, proving its suitability for quadcopters operating under varied and harsh conditions.

Outlook: Innovation Driving High-Performance UAV Manufacturing

As UAV development trends toward greater intelligence and higher performance, advancements in 3D printing and materials science are becoming pivotal to industrial upgrading. TPM3D continues to lead through sustained investment in SLS innovation and material R\&D.

By delivering optimized solutions and fostering close industry collaboration, TPM3D is committed to supporting high-quality UAV production—propelling the drone industry to new heights through technical excellence and forward-thinking innovation.
